12 Volt Wiring Size Chart

$9.82
/
Shipping calculated at checkout.
  • Father's Day — Order by June 10 for delivery by June 15. Free Shipping, Continental US over $49.99
  • In stock, ready to ship
  • Backordered, shipping soon

Easily Find the Right 12V DC Wire Size

Avoid the risks of improper wiring, such as equipment damage or fire hazards. The 12 Volt Wiring Size Chart is your trusted solution for selecting the correct wire size for any 12V DC project—whether on your boat, in your car, or for your RV. With large, easy-to-read shaded charts for both 3% and 10% voltage drop, you can size wires accurately and efficiently every time.

  • Includes detailed tables for both regular and engine-room installations
  • Durable, waterproof, and grease-proof design stands up to tough environments
  • Compact size, perfect for toolboxes, lockers, or workbenches
How to Use • Step-by-Step with Pictures

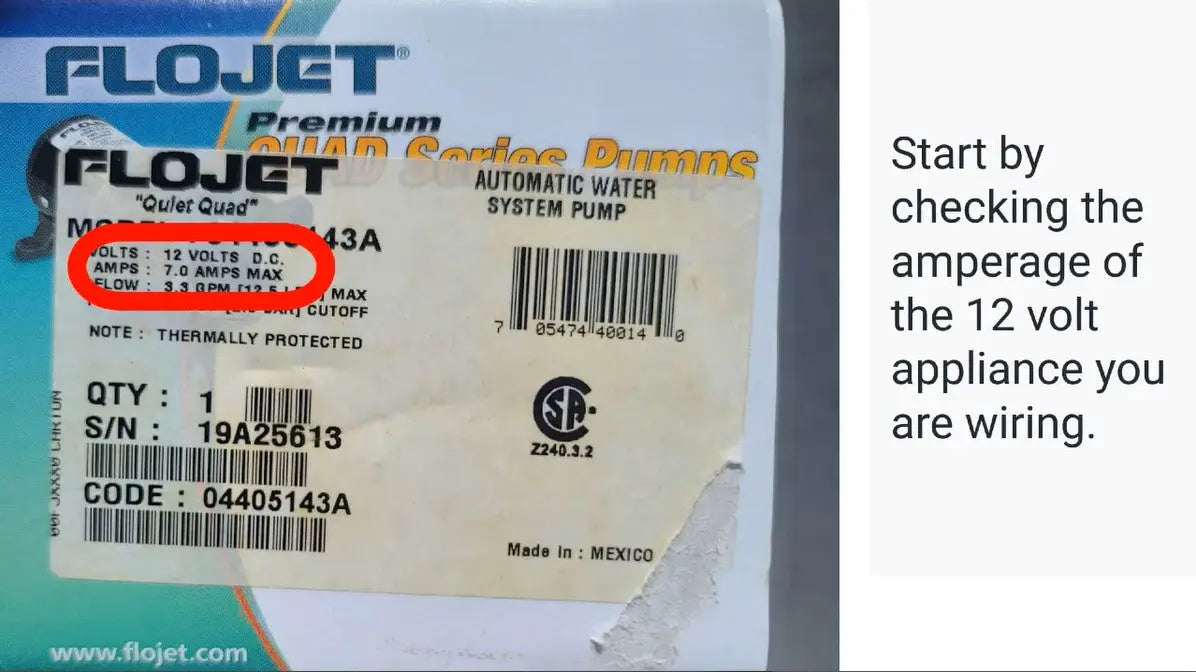

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 1: check the amerage of the 12v appliance you're wiring.

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 2: Measure the distance from the batteries to the item as the wire will go (not in a straight line)

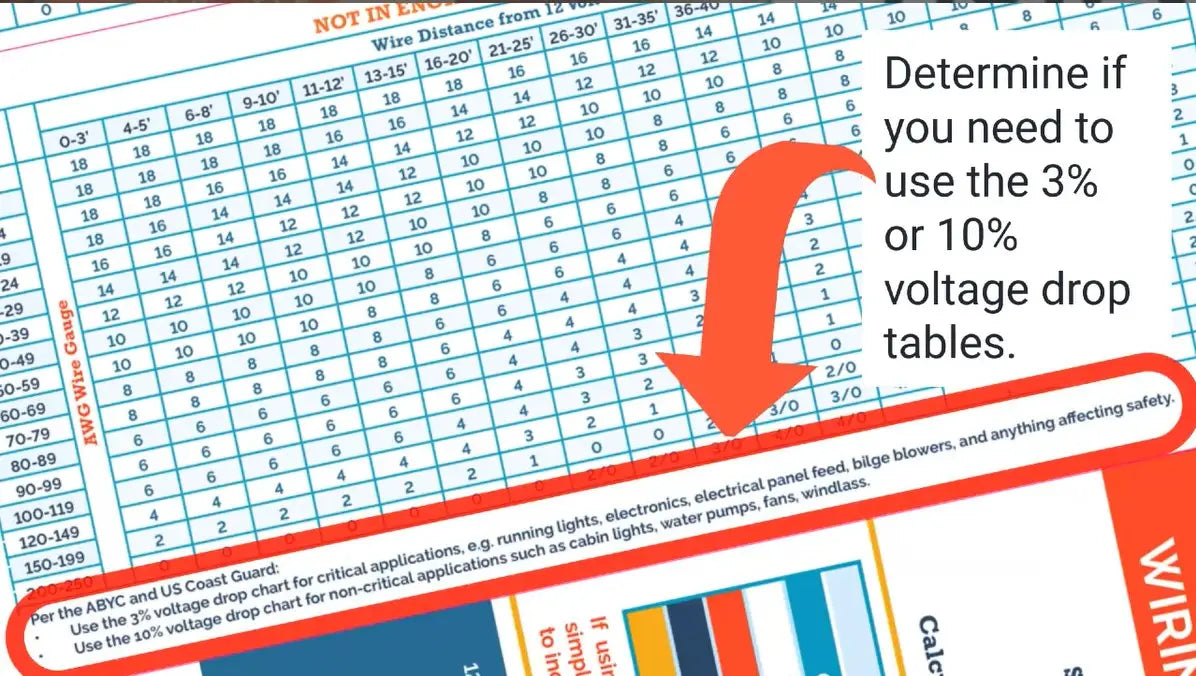

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 3: Decide if you need the 3% of 10% voltage tables, using the criteria printed on the chart

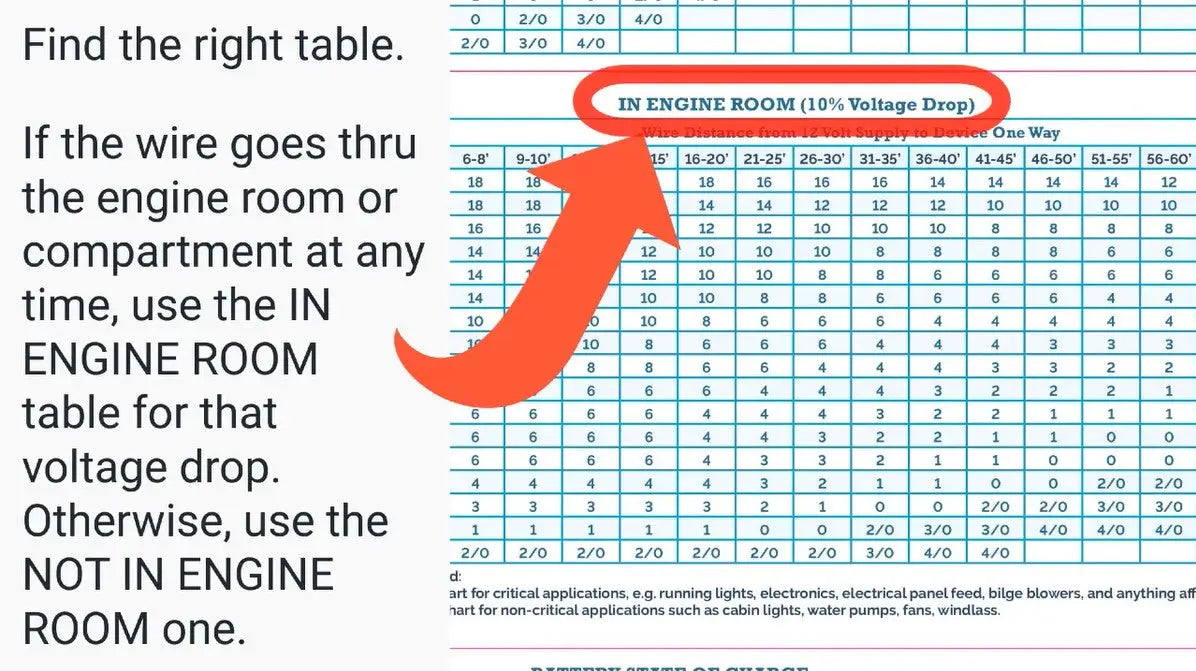

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 4: Find the right table for the allowable voltage drop and whether the wire goes through the engine compartment or not.

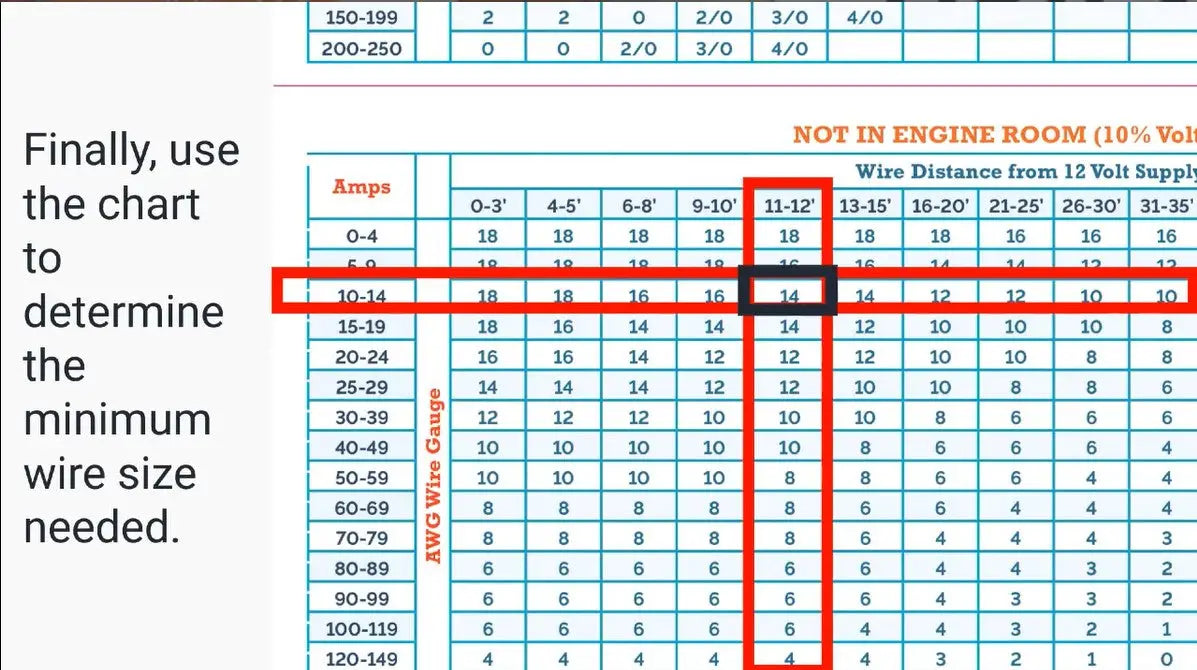

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 5: use the chart to determine the minimum size wire needed. Shaded lines make it easy to determine.

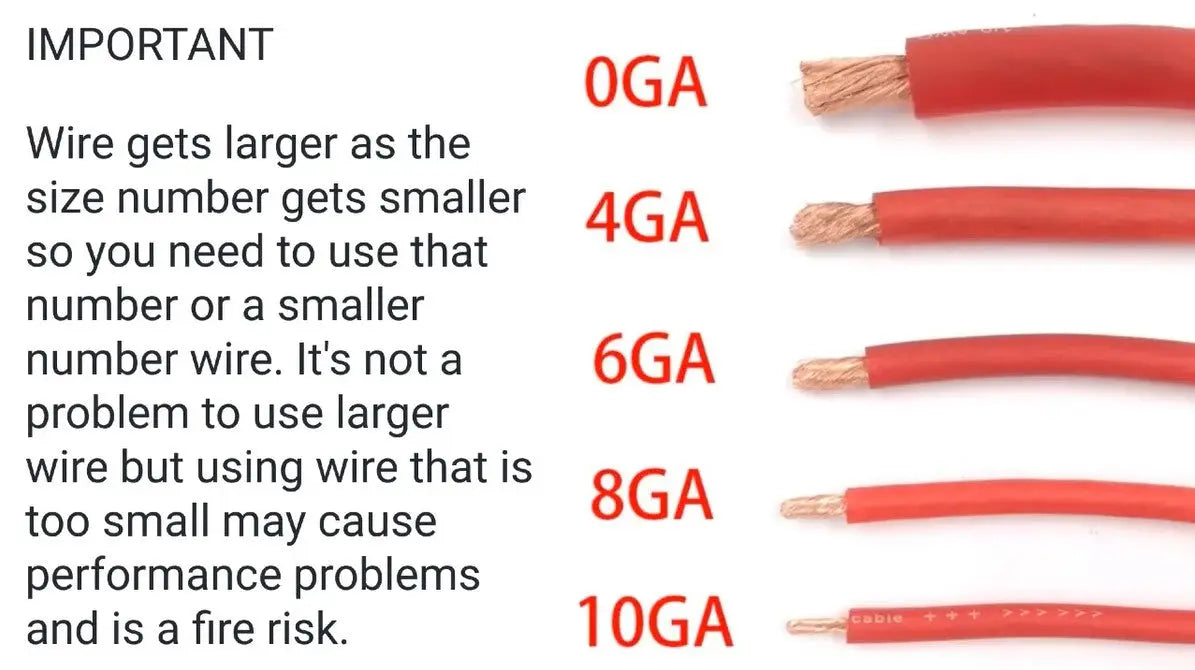

How to Use The Boat Galley 12 Volt Wiring Size Chart Step 6: An important reminder that wire gets larger as the gauge number gets smaller. Using larger wire is never a problem but using too-small wire can cause performance problems and is a serious fire risk.

Includes More Than Just Wire Sizes

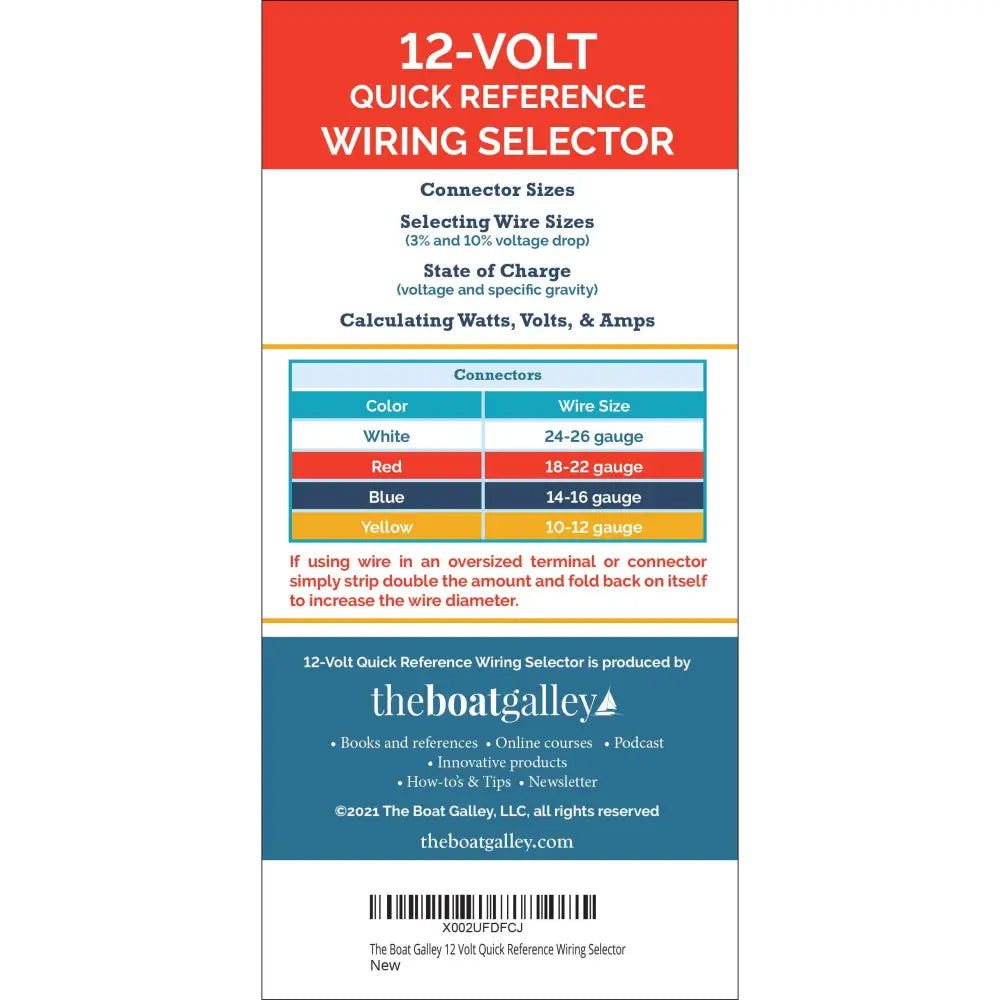

  • Wiring connector sizes and color codes
  • Battery state of charge chart
  • Simple formulas for watts, amps, and volts
Made in USA • Built to Last • Environmentally Friendly

Designed in the USA; printed in the USA on American-made recyclable synthetic paper using environmentally-friendly soy-based inks at a facility that is completely wind-powered. Minimal packaging. Tough enough to handle life on a boat, it won’t tear, degrade, or smear, even in humid or greasy conditions.

Find this product online and in stores — see Where to Buy
