Extension cord gauge is the single most important factor when running a pool pump on a temporary cord — and it's the one most pool owners get wrong. Using an undersized cord doesn't just trip breakers. It causes voltage drop that forces the pump motor to overheat, shortens motor life, and in severe cases creates a fire risk.
This guide tells you exactly what gauge cord you need based on your pump's amperage and the distance from your outlet.
Understanding Wire Gauge: Lower Number = Thicker Wire
Extension cord gauge follows the American Wire Gauge (AWG) system, where a lower number means a thicker, higher-capacity wire. A 10-gauge cord carries more current safely than a 14-gauge cord. A 16-gauge cord is for lamps and phone chargers — not pool pumps.
The thicker the wire, the less resistance, and the less voltage drop over distance. For a motor that draws 10+ amps continuously, resistance in the cord translates directly to heat and motor stress.
Pool Pump Extension Cord Gauge Chart
| Pump Amperage | Up to 25 ft | 25–50 ft | 50–100 ft |
|---|---|---|---|
| Up to 10A | 14 AWG | 12 AWG | 10 AWG |
| 10–15A | 12 AWG | 10 AWG | 10 AWG |
| 15–20A | 10 AWG | 10 AWG | 8 AWG |
When in doubt, go heavier. A 10-gauge cord works safely for any residential pool pump at any practical run length. The cost difference between a 12-gauge and 10-gauge cord is small. The cost of a burned-out pump motor is not.
How to Find Your Pump's Amperage
Look at the nameplate label on your pump motor housing. Find the FLA (Full Load Amps) or RLA (Rated Load Amps) value. This is the maximum current draw under normal operating conditions. Use this number with the chart above to select the correct cord gauge.
Common residential pool pump amperage ranges:
- Small above-ground pump (0.5–1 HP): 4–8 amps
- Standard above-ground pump (1–1.5 HP): 8–12 amps
- In-ground pump (1.5–2 HP): 10–15 amps
- Variable speed pump: varies — check nameplate
The Other Half of the Equation: Protect the Connection
Even the right gauge cord creates a problem if the plug-to-cord connection gets wet. Moisture at the junction causes GFCI trips, corrosion, and in worst cases a shock hazard. This is the most common cause of pool pump GFCI trips in summer — and it has nothing to do with the cord gauge.

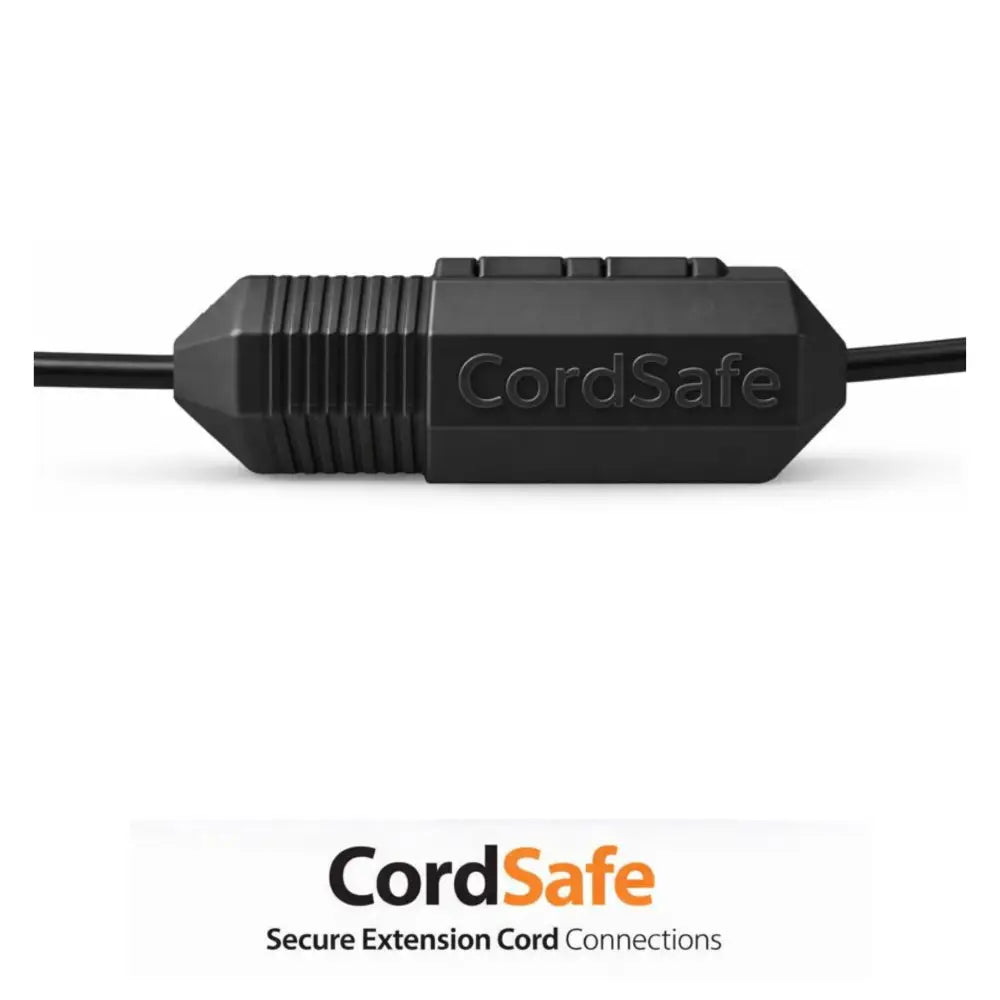

CordSafe snaps over the plug connection and seals it against rain, splashing water, dew, and humidity. It's the last piece of a safe pool pump extension cord setup — and the one most people skip.
- ✅ Fits 12, 14, and 16 gauge plugs
- ✅ Seals against rain, splash, and humidity
- ✅ Prevents GFCI trips from moisture intrusion
- ✅ Made in the USA
