How do you read a rain gauge accurately? Place the gauge in an open area away from obstructions, check it within 24 hours of a rain event, read the inner measuring tube at eye level from the bottom of the meniscus, record the measurement, and empty the gauge completely before the next event. The Stratus Precision Rain Gauge has a magnified inner tube that makes reading to 0.01-inch easy even in low light. Made in USA.
Tom's Quick Answer: Get eye level with the inner tube, read from the bottom of the curved water surface (the meniscus), write it down, and empty it. Takes 30 seconds. Do it within 24 hours of every rain event before evaporation affects the reading.
Tom's Real-World Advice
Reading a rain gauge sounds simple — and it is, once you know the two things most people get wrong. First, they read from the top of the meniscus instead of the bottom, which adds 0.02–0.05 inches to every reading. Second, they wait too long after a rain event and lose measurement to evaporation. Both errors are small individually but compound over a season into significantly wrong data.

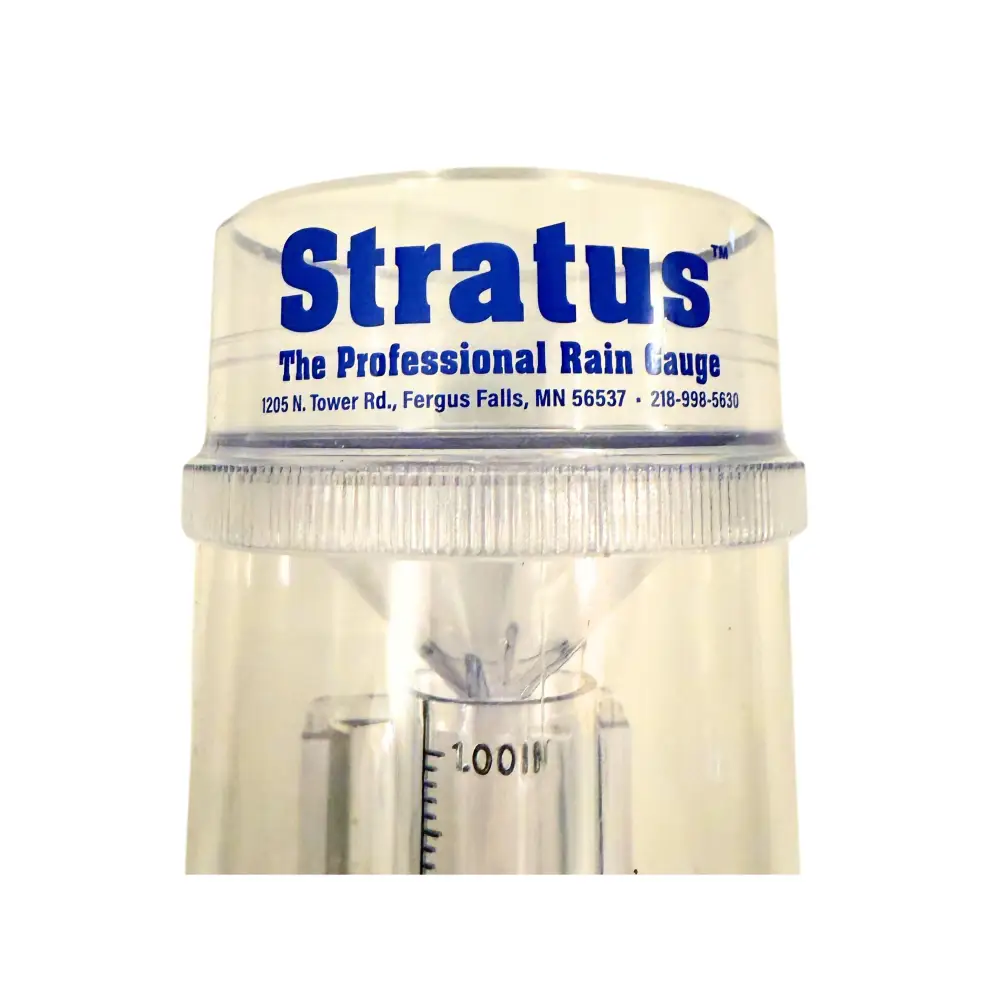

The Stratus gauge makes accurate reading easy. The inner measuring tube is narrow and magnified — the water level is easy to see and the markings are clear. I can read mine accurately in 10 seconds standing next to it. No squinting, no guessing.
Step-by-Step: How to Read the Stratus Rain Gauge
- Approach within 24 hours of the rain event. Evaporation begins immediately after rain stops. Read within 24 hours for accurate results — sooner is better in hot weather.
- Get eye level with the inner measuring tube. Crouch or bend so your eyes are at the same height as the water level in the inner tube. Reading from above gives a false low reading.
- Read from the bottom of the meniscus. Water in a narrow tube curves upward at the edges — this curve is called the meniscus. Always read from the lowest point of the curve, not the edges. This is the standard for all scientific liquid measurement.
- Read to the nearest 0.01 inch. The Stratus inner tube is marked in 0.01-inch increments. Estimate to the nearest mark — with practice this takes 5 seconds.
- Record the measurement immediately. Write it down or log it in your CoCoRaHS account before you forget. Tom keeps a simple notebook by the back door.
- Empty the gauge completely. Pour out all water from both the inner tube and the outer collection cylinder. Tip it upside down and shake to remove residual drops. Any water left will add to the next reading.
- Check the gauge is still level. Wind and ground movement can tilt the gauge between events. A tilted gauge underreads rainfall. Check level monthly.
Common Reading Mistakes and How to Avoid Them
| Mistake | Effect on Reading | Fix |
|---|---|---|
| Reading from top of meniscus | Reads 0.02–0.05" high | Always read from bottom of curve |
| Reading from above eye level | Reads low | Get eye level with the water surface |
| Waiting more than 24 hours | Reads low (evaporation) | Check within 24 hours of rain stopping |
| Not emptying completely | Next reading reads high | Tip upside down, shake out residual drops |
| Gauge not level | Reads low | Check level monthly, adjust bracket |
| Gauge near obstructions | Reads low or high depending on wind | Mount 10+ feet from any structure or tree |
How to Use Your Reading to Adjust Garden Watering
Once you have your Stratus reading, here's how Tom uses it:
- Tomatoes need 1–2 inches per week. If Stratus shows 0.75 inches fell, you need 0.25–1.25 more inches from supplemental watering through the Tomato Crater moat this week.
- After a heavy rain (1.5+ inches): Skip supplemental watering for 2–3 days. Check soil moisture at 2-inch depth before resuming.
- After a light shower (under 0.25 inches): Don't count it toward your weekly total — it barely penetrates the soil surface. Water normally.
- During a heat wave: Increase your weekly target to 2+ inches. Stratus tells you what nature provided; Tomato Crater delivers the rest.
Joining CoCoRaHS: Turn Your Reading Into Science
CoCoRaHS (Community Collaborative Rain, Hail and Snow Network) is a free volunteer network where home observers submit daily precipitation readings that go directly to NOAA. Your Stratus gauge is the official CoCoRaHS gauge. Sign up at cocorahs.org, enter your readings daily, and your data contributes to the national precipitation database used by farmers, emergency managers, and water utilities in your area.
Tom has been a CoCoRaHS observer for three years. It takes 2 minutes a day and the data is genuinely useful to people who depend on accurate local rainfall information.
FAQs
How do you read a rain gauge correctly?
Get eye level with the inner measuring tube, read from the bottom of the meniscus (the curved water surface), record the measurement, and empty the gauge completely. Always read within 24 hours of a rain event before evaporation affects accuracy.
What is the meniscus on a rain gauge?
The meniscus is the curved surface of water in a narrow tube — it curves upward at the edges due to surface tension. Always read from the lowest point of the curve (the bottom of the meniscus) for accurate measurement. Reading from the top of the curve adds 0.02–0.05 inches to every reading.
How soon after rain should I read my gauge?
Within 24 hours — sooner in hot weather. Evaporation begins immediately after rain stops and will reduce your reading if you wait too long. Tom checks his gauge every morning as part of his garden routine.
How do I use rain gauge readings to water my garden?
Tomatoes need 1–2 inches per week. Subtract your Stratus reading from the weekly target to determine how much supplemental watering to deliver through the Tomato Crater moat. Light showers under 0.25 inches don't meaningfully penetrate the root zone and shouldn't count toward your weekly total.
What is CoCoRaHS and how do I join?
CoCoRaHS is a free volunteer precipitation observation network. Sign up at cocorahs.org, use your Stratus gauge (the official CoCoRaHS gauge), and submit daily readings. Your data goes to NOAA and helps local farmers, emergency managers, and water utilities.
