Choosing the wrong gauge extension cord for a pool pump isn’t just an inconvenience — it’s a fire and shock hazard. Undersized wire generates heat under sustained load, degrades insulation, and can trip your GFCI or damage your pump motor. This guide tells you exactly what size cord you need.
Why Gauge Matters More for Pool Pumps
Pool pumps are high-draw motors that run continuously for hours. A typical 1 HP pool pump draws 8–12 amps at startup and sustains 6–10 amps during operation. That sustained load generates heat in undersized cords — and heat near water is dangerous.
Extension cord gauge is rated by AWG (American Wire Gauge). The lower the number, the thicker the wire and the more current it can safely carry. Most household extension cords are 16 AWG — that’s too thin for a pool pump on any run longer than a few feet.
Pool Pump Extension Cord Gauge Chart
| Pump Size | Typical Amps | Up to 25 ft | 25–50 ft | 50–100 ft |
|---|---|---|---|---|
| 3/4 HP | 6–8A | 12 AWG | 12 AWG | 10 AWG |
| 1 HP | 8–10A | 12 AWG | 12 AWG | 10 AWG |
| 1.5 HP | 10–12A | 12 AWG | 10 AWG | 10 AWG |
| 2 HP | 12–15A | 10 AWG | 10 AWG | Not recommended |
The minimum for any pool pump is 12 AWG. Never use 14 AWG or 16 AWG for a pool pump — these are undersized for the sustained load and will run hot.
How to Read Extension Cord Gauge Labels
Extension cord packaging lists gauge as part of the cord’s specification. Look for:
- AWG number — lower is thicker and better for high-draw appliances (12 AWG > 14 AWG > 16 AWG)
- “W” in the jacket rating — SJTW or SJTOW means it’s rated for outdoor use. Required for pool pump applications.
- Amperage rating — should exceed your pump’s running amperage with headroom to spare
If the cord doesn’t have a “W” in its jacket rating, it’s an indoor cord. Don’t use it outdoors near a pool.
What Happens If You Use the Wrong Gauge?
- Cord runs warm or hot to the touch — the wire is carrying more current than it’s rated for
- GFCI trips repeatedly — voltage drop from undersized wire can cause nuisance tripping
- Pump motor runs slow or struggles to start — voltage drop starves the motor
- Insulation degrades over time — heat breaks down the cord jacket, creating a shock hazard
- Fire risk — in extreme cases, an overloaded cord can ignite nearby materials
Don’t Forget the Connection
Even with the right gauge cord, the plug connection between the extension cord and the pump’s power cord is exposed to rain, splashing, and ground moisture. An unprotected connection near a pool is a shock hazard.

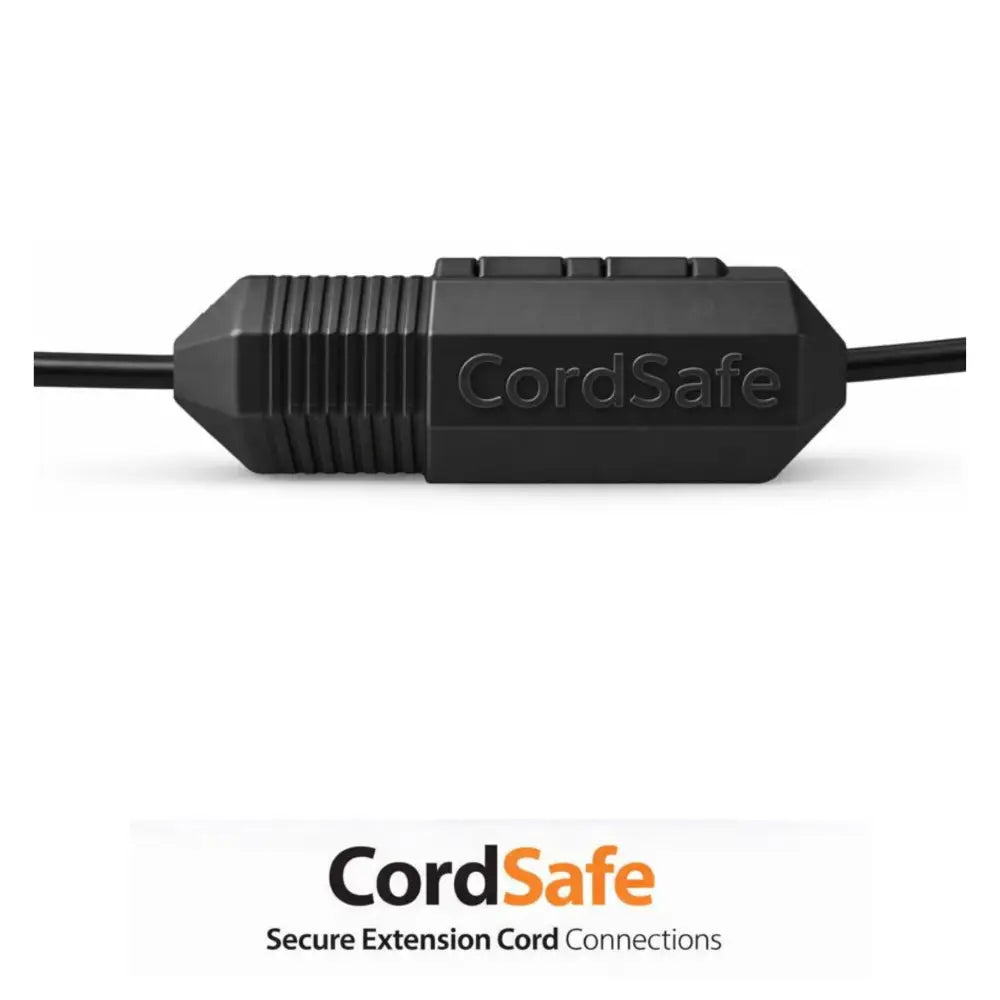

CordSafe PLUS snaps around the plug connection to create a weatherproof seal. It fits 12–18 AWG outdoor extension cords and is designed for high-draw outdoor appliances like pool pumps. Made in USA.
Quick Reference: Pool Pump Cord Gauge Rules
- ✅ 12 AWG minimum for any pool pump
- ✅ 10 AWG for runs over 50 feet or pumps over 1.5 HP
- ✅ Outdoor-rated cord only (SJTW or SJTOW)
- ✅ GFCI-protected outlet required
- ✅ Protect the plug connection from moisture
- ❌ Never use 14 AWG or 16 AWG for a pool pump
- ❌ Never use an indoor cord outdoors
- ❌ Never run over 100 feet — install a dedicated circuit instead
Frequently Asked Questions
What gauge extension cord do I need for a 1 HP pool pump?
Use 12 AWG for runs up to 50 feet. For runs of 50–100 feet, use 10 AWG. Never use 14 AWG or 16 AWG for a pool pump.
Can I use a 14 AWG extension cord for a pool pump?
No. 14 AWG is undersized for the sustained load of a pool pump motor. It will run hot and can become a fire or shock hazard. Use 12 AWG minimum.
What does AWG mean on an extension cord?
AWG stands for American Wire Gauge. The lower the number, the thicker the wire and the more current it can safely carry. 12 AWG is thicker and safer for high-draw appliances than 14 AWG or 16 AWG.
How do I know if my extension cord is outdoor-rated?
Look for a “W” in the cord’s jacket rating on the packaging or cord label — for example, SJTW or SJTOW. If there’s no “W,” it’s an indoor cord and should not be used outdoors near a pool.
How do I protect the extension cord connection near a pool?
Use CordSafe PLUS to snap around the plug connection and keep it weatherproof. Elevate the connection off wet ground and never let it sit in standing water.
